PHABRIX at SATIS Expo 2019 !

PHABRIX, a worldwide leader in test and measurement solutions will demonstrate the latest features on its Qx Series of hybrid IP/SDI, 4K/UHD and HDR/WCG rasterizers, Rx rasterizers for multi-channel monitoring and renowned Sx Series of handheld instruments. PHABRIX will join its distributor, TEVIOS, on booth A17 Pullman.

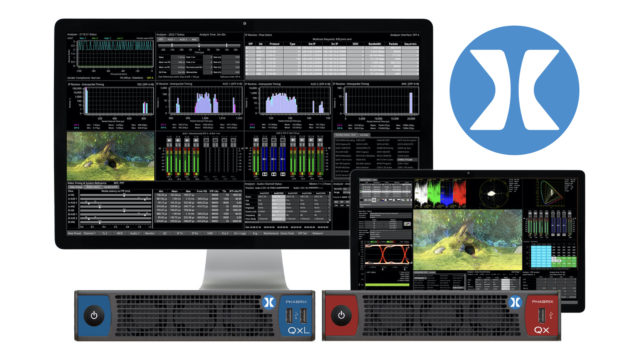

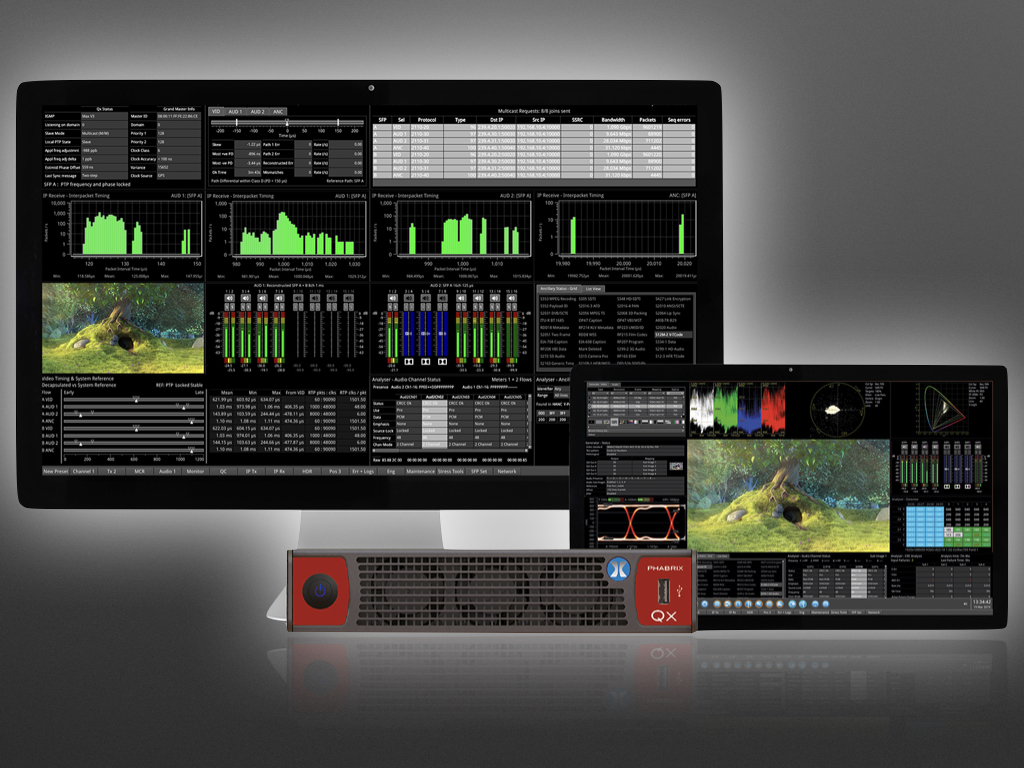

Qx Series – Advanced rasterizers for hybrid IP/SDI ST 2110 and ST 2022-7 analysis and monitoring

  • The Qx family (Qx 10G IP and QxL 25G IP) offers ST 2110 (-20, -30, -31, -40), two-port ST 2059 Precision Time Protocol (PTP) and ST 2022-7 seamless protection
  • It provides the simultaneous monitoring of 1 video, 2 audio and 1 ANC data flow in up to 16 active and scalable windows
  • Two audio flows each support up to 10 channels at 1ms and up to 80channels at 125us packet time with either PCM or AES3 Transport
  • New Qx ST 2110 advanced engineering IP measurement features include the measurement of ST 2110-21 network compatibility and virtual receiver buffer models, advanced PTP to Flow timing and latency measurements, as well as Inter-Packet Arrival Times for all flows that contribute to the ST 2022-7 seamless reconstruction
  • The new TR-1001-1 toolset available on the Qx rasterizer provides support for AMWA NMOS IS-04 Discovery and Registration and IS-05 Connection Management with DHCP, DNS Service Discovery, LLDP, SDP and PTP System Resource



Sx TAG – Portable hybrid IP/SDI test and measurement

  • The handheld Sx TAG provides support for SMPTE 2110 (-20, -30, -40) encapsulation and decapsulation with ST 2059 PTP
  • Its new features include SDI to IP and IP to SDI gateways for both ST 2110 and ST 2022-6 as well as the ability to generate an analog reference output slaved to the ST 2059 PTP or 2022-6 IP input



Qx Series – Advanced SDI interface stress testing

  • PHABRIX will demonstrate the Qx Series’ new SDI-STRESS option, providing an advanced toolset for SDI interface stress testing
  • Together with its fast, automated 12G-SDI physical layer analysis employing RTE™ (Real-Time Eye) technology, SDI-STRESS provides a world-class solution to SMPTE compliance verification of 12G/4x3G/2x6G/6G/3G/HD-SDI interfaces
  • New features include indication of DC offset, overshoot, undershoot, full and windowed eye amplitude histograms with Peak or Shorth Mean measurements, jitter amplitude histograms, SDI jitter insertion (10Hz to 10MHz, 0.01UI up to 128UI pk-pk), transmitter eye amplitude adjustment (+/-15%), risetime, pre-emphasis, signal invert and mute controls



Qx Series – Broadcast QC

  • The Qx Rasterizer family now provides on-screen display of ANC Timecode and SCTE 104 triggers
  • Accurate display of dual language support of OP47 and 608 in 708 Closed Captions is provided using two picture windows



Sx Series and Rx Series – AV Delay Generation and Analysis

  • AV Delay Generation and Analysis, a new option available on all PHABRIX’s handheld Sx instruments and the Rx Rasterizer, offers an end-to-end solution for the measurement of audio to video differential delay through a broadcast system
  • The AV Delay Generator produces an adapted EBU Tech 3305 AV Sync ‘clapperboard’ Test Pattern and is compatible with third party AV delay analysers including the LAWO V_pro8
  • The Rx is capable of simultaneously analysing up to 16 channels of audio
  • The handheld Sx range is capable of analysing 2 channels of audio and the SxA, SxE and Sx TAG can also be used to measure up to 1 second of overall video or audio latency/delay
